Brand Name : DAWSON
Model Number : BST-4800A
Certification : CE
Place of Origin : China
MOQ : 1
Price : USD 15,700 ~ 95,000 / set
Payment Terms : L/C, T/T
Supply Ability : 20 sets/month
Delivery Time : 5-8 weeks
Packaging Details : Standard Export Packing
Screw : 76 mm
Shot size : 1766 cm³
Shot weight : 1590 g
Injection pressure : 158 Mpa
Injection rate : 398 g/s
Screw L/D ratio : 20.7 L/D
Screw speed : 0-160 r.p.m
Clamping tonnage : 4800 KN
Mould Thickness : 280-750 mm
Heat power : 23.4 KW
Pump motor power : 15+25 KW
Machine dimension : 8.3x2.2x2.2 m
Machine weight : 16.3 t
Oil tank capacity : 600 L
Space between tie-bars : 750x720 mm
Max. pump pressure : 16 Mpa
High speed 100ml plastic cosmetics flip cap Injection Molding Machine
The extrusion blow molding process involves melting plastic resin and extruding it into a hollow tube, called a parison. The parison is then placed in a mold, and compressed air is blown into it, causing the plastic to expand and take the shape of the mold. After the plastic cools and solidifies, the mold is opened, and the finished bottle is ejected.
and high automation.
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
![]() |

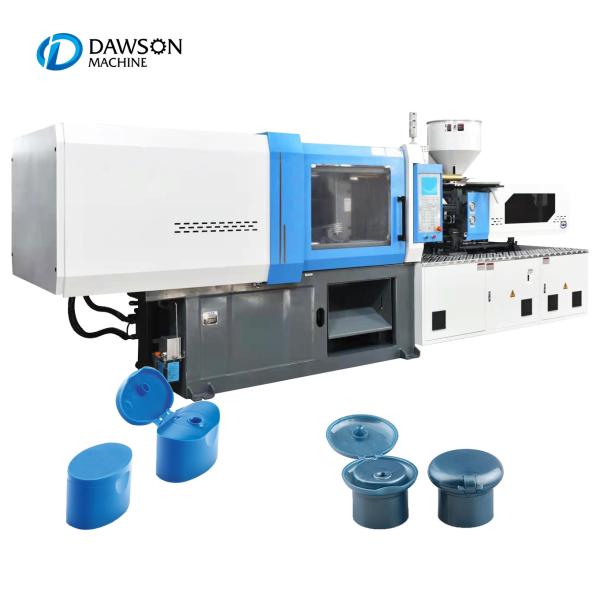

High Speed 100ml Plastic Cosmetics Flip Cap Injection Molding Machine Images |
